Checkout the twin bottle video for the ZX-14
here>> DynoTune twin bottle ZX-14 kit video
How do the bottles mount and get filled? Watch the
Video here>> "Mounting and Refilling"
This DynoTune dry Motorcycle nitrous oxide
system will add up to an additional 80HP to your Ride (Power commander
needed for 40HP or larger jetting). Comes with eveything you need for a complete
installation. This Dry kit uses your bikes EFI sensors to add the additional
fuel needed to make the Power! By passing the cool nitrous charge past the Air
Temperature sensor in the intake track, we can fool the bikes EFI system into
adding the little extra fuel you need to make some sweet power! Note: Consult
your factory manual to make sure you have a "Air Temperature" sensor in your
intake (Most EFI Bikes have a Temp sensor). Comes with three jet settings of
15HP, 30HP, and 40HP.
ZX-14 kit comes with custom
bracketadaptors as shown above.
This
DynoTune dry Mototcycle nitrous oxide system will add up to an
additional 80HP to your Ride. Comes with eveything you need for a complete
installation. This Dry kit uses your bikes EFI sensors to add the additional
fuel needed to make the Power! By passing the cool nitrous charge past the Air
Temperature sensor in the intake track, we can fool the bikes EFI system into
adding the little extra fuel you need to make some sweet power! Note: Consult
your factory manual to make sure you have a "Air Temperature" sensor in your
intake (Most EFI Bikes have a Temp sensor). Comes with three jet settings of
15HP, 30HP, and 40HP.
Bottles twist on to mount so changing bottles is a
ten second process, great for the race track! Custom painted bottles will no
longer be scratched!
The Motorcycle nitrous oxide system Comes
complete with instructions on how to use your Horn or starter for nitrous
activation making it a clean installation.
The Twin inlet system allows the user to configure the
inlet any way they want. Single or dual snorkel intakes, its all in the kit!
High Heat/Pressure teflon tubing inculded.
The Base

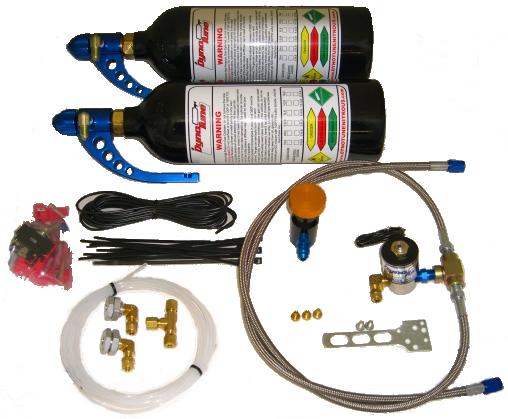

motorcycle nitrous oxide kit includes the following:
-- 2 12oz black powder coated Nitrous Bottles (Chrome/Brushed
available)
-- 2 Billet bottle mounting brackets
-- 2
two foot stainless bradied nitrous lines
-- 2 Nozzles with mounts
-- High flow Nitrous Solenoid
-- Three nitrous jets
--
Electrical kit with switch, terminals etc.
-- High Pressure teflon
tubing and compression fittings.
-- Nitrous bottle fill adaptor. Bottles
simply twist off in seconds for the ulitmate in quick filling.
-- Custom zx-14 Bracket
adaptors
The following options are available:
-- 20oz bottles:Measure to make sure they will fit your application as
the bottles are large! 11.5" long x 3.25" dia.
-- Diffrent color
brackets now available!
-- Bottle colors, Brushed, Gloss black,
Show polished chrome
ATTENTION!!! NOTE: Old style bracket shown above. All the new
brackets shown below
will have the larger round knobs. The knobs are much easier to turn, will
not come off, and the brackets are thicker and stronger than ever! It comes with
a Gauge port built into the side of the bracket (1/8" NPT threads) plus the
standard outlet fitting on the opposite side. (Gauge sold separate) All new kits
will come with this style bracket(s).
