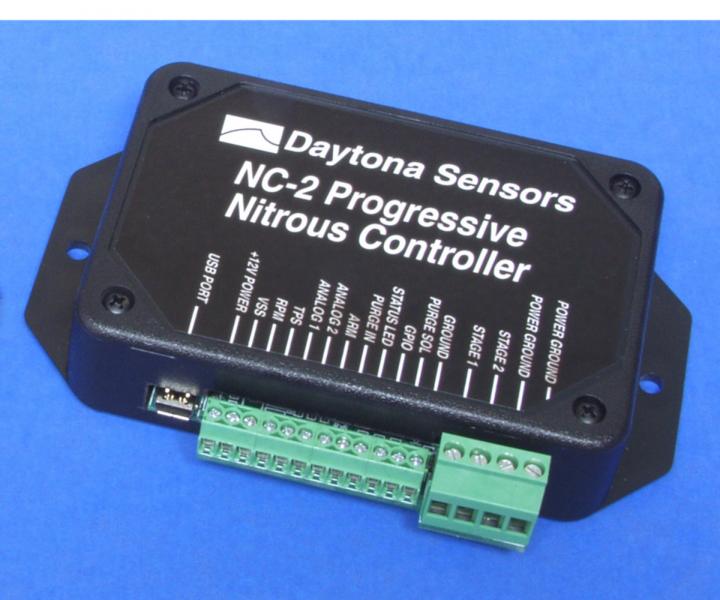

· Drives two nitrous stages and purge solenoid. NC-2 is capable of 40 amp output on each stage.
· Each stage is independently programmable based on throttle position, RPM, vehicle speed, time delay, and first gear lockout. NC-2 adds capability for RPM or time based progressive control.
· Output for purge solenoid (requires external relay). Programmable automatic purge when system is armed.
· Flexible RPM input compatible with high voltage coil drive (vehicles with coil packs or distributor ignition), standard 12 volt tach signal, or low level logic drive (newer vehicles with coil-on-plug).
· General purpose input/output (GPIO) terminal. Programmable for use as shift light output, additional stage enable input, or control output for ignition retard.
· Status LED output (ideal for use with arming switch containing LED).
· Built-in data logging. Ideal as basic vehicle data logger during dyno tuning or drag racing. Logs data whenever system is armed. Stores last 5 minutes of data at 10 samples/second.
· Data logged includes throttle position, RPM, vehicle speed, status of all inputs and outputs, and two 0-5 volt analog inputs. If you need to add a vehicle speed sensor to a race car.
· 0-5 Volt analog inputs are compatible with Daytona Sensors single or dual channel WEGO systems for logging wide-band air/fuel ratio data.
· Heavy duty industrial grade clamping terminal blocks allow easy and reliable hookup without soldering or crimping.
· Compact size: NC-1 is 3.3”L x 2.4”W x 1.1”H and NC-2 is 4.1”L x 2.8”W x 1.1”H (not including mounting feet and terminal block).
· USB interface to laptop PC. Powerful Windows software for programming controller and downloading logged data.
comes with controller, usb cable, instruction manual, and software disk.
